SAVANTEC VMD internal cold longhole drilling bit SAVANTEC VMD internal cold longhole drilling bit can greatly improve the processing efficiency and is an effective supplement to SAVANTEC fast drilling! In machining, large hole machining is becoming more and more common. The application of VMD large drill bit can greatly improve the machining efficiency and save the tool cost.

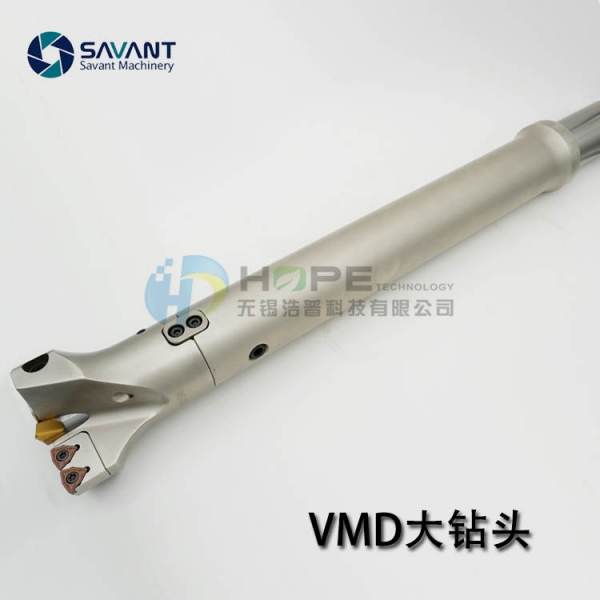

SAVANT VMD大直徑深孔鉆頭
SAVANT VMD可轉位深孔大鉆頭能大幅度提高加工效率，是SAVANT快速鉆有效的補充！
機械加工中，大孔加工越來越普遍，應用VMD深孔大鉆頭可大幅提高加工效率，節省刀具成本。
工藝 | 工藝過程 | 轉速 | 進給 | 加工時間（分） | 時間總長（分） |
傳統工藝 | D60麻花鉆 | 80 | 16 | 70 | 150 |
粗鏜刀 | 200 | 30 | 40 | ||
粗鏜刀 | 200 | 30 | 40 | ||
新工藝 | VMD大鉆頭 | 280 | 45 | 18 | 18 |
加工D105mm孔，深度550mm，材料42Crmo、HB200 | |||||
產品特點：
l 采用中心導向鉆結構，定心效果好，孔位直線度高。
l 內外刀刃采用可替換小刀夾結構。在實際使用中，最易損壞的是外刃刀夾，通過替換小刀夾，避免整支鉆頭報廢，節省刀具成本。
l 刀頭和刀桿采用組合結構。加工不同深度的孔，只需更換不同長度的刀桿即可。
l 整支鉆頭帶中心出水，可較好的冷卻刀片，提高刀片使用壽命。同事內冷更有利于鐵屑的排出。
l 刀片為硬著合金標準品，可以使用較高的的轉速和進給，孔壁光潔度也相比高速鋼鉆頭有大幅提升。
l 加工過程中，鐵屑為斷屑狀態，沒有傳統麻花鉆的細長纏繞鐵屑，安全性大大提高。
l 加工過程中，自動連續進刀，無需每次推刀回屑，效率大幅提升。
型號 | D | Ds | L1 | L | 導向鉆 | 刀夾 | 刀片 | 螺絲 | 扳手 | |
VMD-045050 | 45-50 | 16 | 30 | 50 | 85 | PLS-1035 TiN-H | VMC-045050N/T | WC030208 | TSB-22045 | T6 |
VMD-050055 | 50-55 | 16 | 30 | 50 | 85 | VMC-050055N/T | ||||
VMD-055060 | 55-60 | 16 | 30 | 60 | 100 | PLS-1238 TiN-H | VMC-055060N/T | WC040208 | TSB-25045 | T8 |
VMD-060065 | 60-65 | 25 | 45 | 82 | 127 | VMC-060065N/T | WC050308 | TSB-30070 | ||
VMD-065070 | 65-70 | 25 | 45 | 82 | 127 | VMC-065070N/T | ||||
VMD-070075 | 70-75 | 25 | 45 | 82 | 127 | VMC-070075N/T | WCMT06T308 | |||
VMD-075080 | 75-80 | 25 | 45 | 82 | 127 | PLS-1645 TiN-H | VMC-075080N/T | WC06T308 | TSB-35090 | T15 |
VMD-080085 | 80-85 | 25 | 45 | 82 | 127 | VMC-080085N/T | ||||
VMD-085090 | 85-90 | 30 | 50 | 82 | 127 | VMC-085090N/T | ||||
VMD-090095 | 90-95 | 30 | 50 | 82 | 127 | VMC-090095N/T | ||||
VMD-095100 | 95-100 | 30 | 50 | 82 | 127 | VMC-095100N/T | ||||
VMD-100105 | 100-105 | 32 | 58 | 94 | 139 | PLS-2045 TiN-H | VMC-100105N/T | |||
VMD-105110 | 105-110 | 32 | 58 | 94 | 139 | VMC-105110N/T | WC050308 | TSB-30070 | T10 | |
VMD110-115 | 110-115 | 32 | 58 | 94 | 139 | VMC-110115N/T | WC06T308 | TSB-35090 | T15 | |
VMD-115120 | 115-120 | 40 | 70 | 104 | 154 | VMC-115120N/T | ||||
VMD-120125 | 120-125 | 40 | 70 | 104 | 154 | PLS-2556 TiN-H | VMC-120125N/T | |||
VMD-125130 | 125-130 | 40 | 70 | 104 | 154 | VMC-125130N/T | ||||
VMD-130135 | 130-135 | 40 | 70 | 104 | 154 | VMC-130135N/T | ||||
VMD-135140 | 135-140 | 40 | 70 | 104 | 154 | VMC-135140N/T | ||||
VMD-140150 | 140-150 | 50 | 80 | 116 | 176 | VMC-140150N/T | WC080408 | TSB-40110 | ||
VMD-150160 | 150-160 | 50 | 80 | 116 | 176 | VMC-150160N/T | ||||
VMD-160170 | 160-170 | 50 | 80 | 116 | 176 | PLS-3068 TiN-H | VMC-160170N/T | |||
VMD-170180 | 170-180 | 50 | 80 | 116 | 176 | VMC-170180N/T |
定心鉆 | 單位mm | |
型號 | D | L |
PLD-V1035TIN-H | 10 | 35 |
PLD-V1238TIN-H | 12 | 38 |
PLD-V1645TIN-H | 16 | 45 |
PLD-2045TIN-H | 20 | |
PLD-2556TIN-H | 25 | 56 |
PLD-3068TIN-H | 30 | |
| 定心鉆 單位mm型號DLPLD-V1035TIN-H1035PLD-V1238TIN-H1238PLD-V1645TIN-H1645PLD-2045TIN-H20 PLD-2556TIN-H2556PLD-3068TIN-H30 |
VMD連接桿系列 | 單位mm | ||||||
型號 | D | D1 | D2 | L | L2 | M | M(適用孔徑) |
DXZ-3016100 | 30 | 16 | 32 | 100 | 75 | M8x1 | φ45--φ55 |
DXZ-3013150 | 30 | 16 | 32 | 150 | 75 | M8x1 | |
DXZ-3016200 | 30 | 16 | 32 | 200 | 75 | M8x1 | |
DXZ-3016250 | 30 | 16 | 32 | 250 | 75 | M8x1 | |
DXZ-3016300 | 30 | 16 | 32 | 300 | 75 | M8x1 | |
DXZ-3016400 | 30 | 16 | 32 | 400 | 75 | M8x1 | |
DXZ-4525100 | 45 | 25 | 40 | 100 | 75 | M10x1 | φ60--φ80 |
DXZ-4525150 | 45 | 25 | 40 | 150 | 75 | M10x1 | |
DXZ-4525200 | 45 | 25 | 40 | 200 | 75 | M10x1 | |
DXZ-4525250 | 45 | 25 | 40 | 250 | 75 | M10x1 | |
DXZ-4525300 | 45 | 25 | 40 | 300 | 75 | M10x1 | |
DXZ-4525400 | 45 | 25 | 40 | 400 | 75 | M10x1 | |
DXZ-5030100 | 50 | 30 | 40 | 100 | 75 | M12x1 | φ85--φ95 |
DXZ-5030150 | 50 | 30 | 40 | 150 | 75 | M12x1 | |
DXZ-5030200 | 50 | 30 | 40 | 200 | 75 | M12x1 | |
DXZ-5030250 | 50 | 30 | 40 | 250 | 75 | M12x1 | |
DXZ-5030300 | 50 | 30 | 40 | 300 | 75 | M12x1 | |
DXZ-5030400 | 50 | 30 | 40 | 400 | 75 | M12x1 | |
DXZ-5832100 | 58 | 32 | 40 | 100 | 75 | M12x1 | φ100--φ110 |
DXZ-5832150 | 58 | 32 | 40 | 150 | 75 | M12x1 | |
DXZ-5832200 | 58 | 32 | 40 | 200 | 75 | M12x1 | |
DXZ-5832250 | 58 | 32 | 40 | 250 | 75 | M12x1 | |
DXZ-5832300 | 58 | 32 | 40 | 300 | 75 | M12x1 | |
DXZ-5832400 | 58 | 32 | 40 | 400 | 75 | M12x1 | |
DXZ-7040100 | 70 | 40 | 50 | 100 | 80 | M12x1 | φ115--φ135 |
DXZ-7040150 | 70 | 40 | 50 | 150 | 80 | M12x1 | |
DXZ-7040200 | 70 | 40 | 50 | 200 | 80 | M12x1 | |
DXZ-7040250 | 70 | 40 | 50 | 250 | 80 | M12x1 | |
DXZ-7040300 | 70 | 40 | 50 | 300 | 80 | M12x1 | |
DXZ-7040400 | 70 | 40 | 50 | 400 | 80 | M12x1 | |
DXZ-8050100 | 80 | 50 | 50 | 100 | 80 | M12x1 | φ140--φ195 |
DXZ-8050150 | 80 | 50 | 50 | 150 | 80 | M12x1 | |
DXZ-8050200 | 80 | 50 | 50 | 200 | 80 | M12x1 | |
DXZ-8050250 | 80 | 50 | 50 | 250 | 80 | M12x1 | |
DXZ-8050300 | 80 | 50 | 50 | 300 | 80 | M12x1 | |
DXZ-8050400 | 80 | 50 | 50 | 400 | 80 | M12x1 | |
VMD延長桿系列 | 單位mm | ||||
型號 | D | D1 | L | M | M(適用孔徑) |
YXZ-3016100 | 30 | 16 | 100 | M8*1 | φ45-φ55 |
YXZ-3016200 | 30 | 16 | 200 | M8*1 | |
YXZ-3016300 | 30 | 16 | 300 | M8*1 | |
YXZ-4525100 | 45 | 25 | 100 | M10*1 | φ60-φ80 |
YXZ-4525200 | 45 | 25 | 200 | M10*1 | |
YXZ-4525300 | 45 | 25 | 300 | M10*1 | |
YXZ-5030100 | 50 | 25 | 100 | M12*1 | φ85-φ95 |
YXZ-5030200 | 50 | 25 | 200 | M12*1 | |
YXZ-5030300 | 50 | 25 | 300 | M12*1 | |
YXZ-5832100 | 58 | 32 | 100 | M12*1 | φ100-φ110 |
YXZ-5832200 | 58 | 32 | 200 | M12*1 | |
YXZ-5832300 | 58 | 32 | 300 | M12*1 | |
YXZ-7040200 | 70 | 40 | 200 | M12*1 | φ115-φ135 |
YXZ-7040300 | 70 | 40 | 300 | M12*1 | |
YXZ-7040400 | 70 | 40 | 400 | M12*1 | |
YXZ-8050200 | 80 | 50 | 200 | M12*1 | φ140-φ195 |
YXZ-8050300 | 80 | 50 | 300 | M12*1 | |
YXZ-8050400 | 80 | 50 | 400 | M12*1 | |
SAVANT舍棄式鉆頭分為快速鉆、VMD大鉆頭、鏟鉆及劍齒鉆。為您提高生產效率降低生產成本！
根據您不同的孔徑、公差、光潔度要求，我們幫你選用合適的快速鉆、VMD大鉆頭、鏟鉆及劍齒鉆。
