The handle of the oil path cutter (from external cooling to internal cooling tool handle) is suitable for boring and milling machines or rocker drills without internal cooling. The cooling ring is fixed through the retaining rod to make the machine tool realize internal cooling and improve the service life of the cutter.
High speed oil passage tool handle (fixed with stop rod)

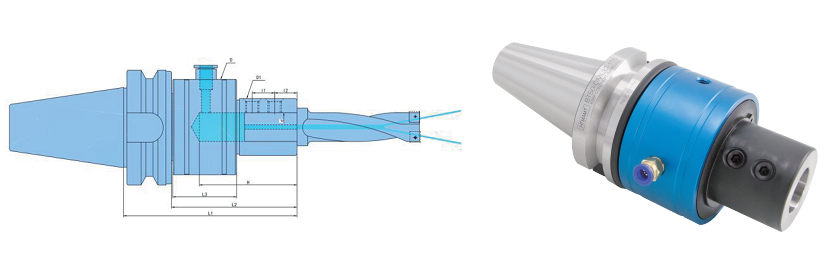

Bt-OML side fixed type of high speed oil path tool handle
Model | L1 | L2 | L3 | H | I1 | I2 | D | D1 | d | Weight |
BT40-OML20-140 | 140 | 96.7 | 57 | 78 | - | 20 | Φ83 | Φ49.5 | 20 | 3.74 |
BT40-OML25-155 | 155 | 111.7 | 93 | 20 | 25 | 3.81 | ||||
BT40-OML32-155 | 112 | 59 | Φ89 | Φ54.5 | 32 | 4.10 | ||||
BT50-OML20-140 | 140 | 97 | 57 | 78 | - | Φ83 | Φ49.5 | 20 | 7.17 | |
BT50-OML25-155 | 155 | 112 | 93 | 20 | 25 | 7.39 | ||||
BT50-OML32-155 | 112.7 | 59 | Φ98 | Φ59.5 | 32 | 8.10 | ||||
BT50-OML40-160 | 160 | 117.7 | 95 | 40 | 7.90 |

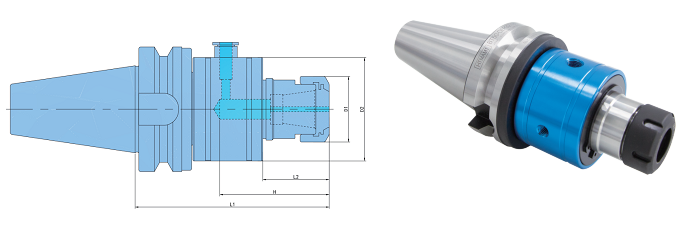

BT-OER collet type high speed oil path tool handle
Model | L1 | L2 | H | D1 | D2 | Weight |
BT40-OER25-160 | 160 | 60 | 96 | 42 | Φ83 | 4.47 |
BT40-OER32-160 | 97 | 52 | 3.82 | |||
BT50-OER25-160 | 89 | 42 | 7.07 | |||
BT50-OER32-160 | 90 | 50 | 7.34 |

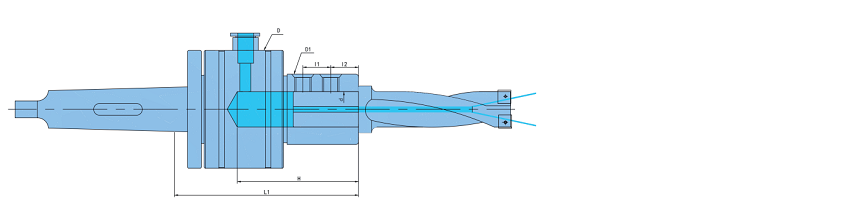

High speed oil way tool handle MT-OML side fixed type
Model | L1 | L2 | I1 | I2 | H | D | D1 | d | Weight |
MT4-OML20-115 | 115 | 96.7 | - | 20 | 78 | Φ83 | Φ49.5 | 20 | 3.56 |
MT4-OML25-130 | 130 | 111.7 | 20 | 93 | 25 | 3.62 | |||
MT4-OML32-135 | 135 | 112 | Φ89 | Φ54.5 | 32 | 4.38 | |||
MT5-OML20-115 | 115 | 97 | - | 78 | Φ83 | Φ49.5 | 20 | 4.40 | |
MT5-OML25-130 | 130 | 112 | 20 | 93 | 25 | 4.50 | |||
MT5-OML32-135 | 135 | 112.7 | Φ89 | Φ54.5 | 32 | 5.01 | |||
MT5-OML40-140 | 140 | 117.7 | 95 | Φ98 | Φ59.5 | 40 | 5.11 | ||
MT6-OML20-120 | 120 | 117.7 | - | 78 | Φ83 | Φ49.5 | 20 | 7.13 | |
MT6-OML25-130 | 130 | 120.1 | 20 | 93 | 25 | 7.22 | |||
MT6-OML32-135 | 135 | 122.5 | Φ89 | Φ54.5 | 32 | 7.85 | |||
MT6-OML40-140 | 140 | 124.7928571 | 95 | Φ98 | 40 | 7.98 |
High speed oil way tool handle MT-OER collet type
Model | L1 | L2 | H | D1 | D2 | Weight |
MT4-OER25-120 | 120 | 45 | 96 | 42 | Φ83 | 3.12 |
MT4-OER32-120 | 97 | 52 | 3.98 | |||
MT5-OER25-120 | 96 | 42 | 4.00 | |||
MT5-OER32-120 | 97 | 50 | 4.61 | |||
MT6-OER25-120 | 96 | 42 | 6.72 | |||
MT6-OER32-120 | 97 | 50 | 7.45 |
Description of high-speed oil path tool handle:
Confirm the center distance s dimension before ordering
Bearing pressure 4MPa
Maximum speed: 3000rpm
The oil path tool handle is suitable for the use of internal cooling tools, and can quickly realize the function of external cooling to internal cooling of the machine tool.
